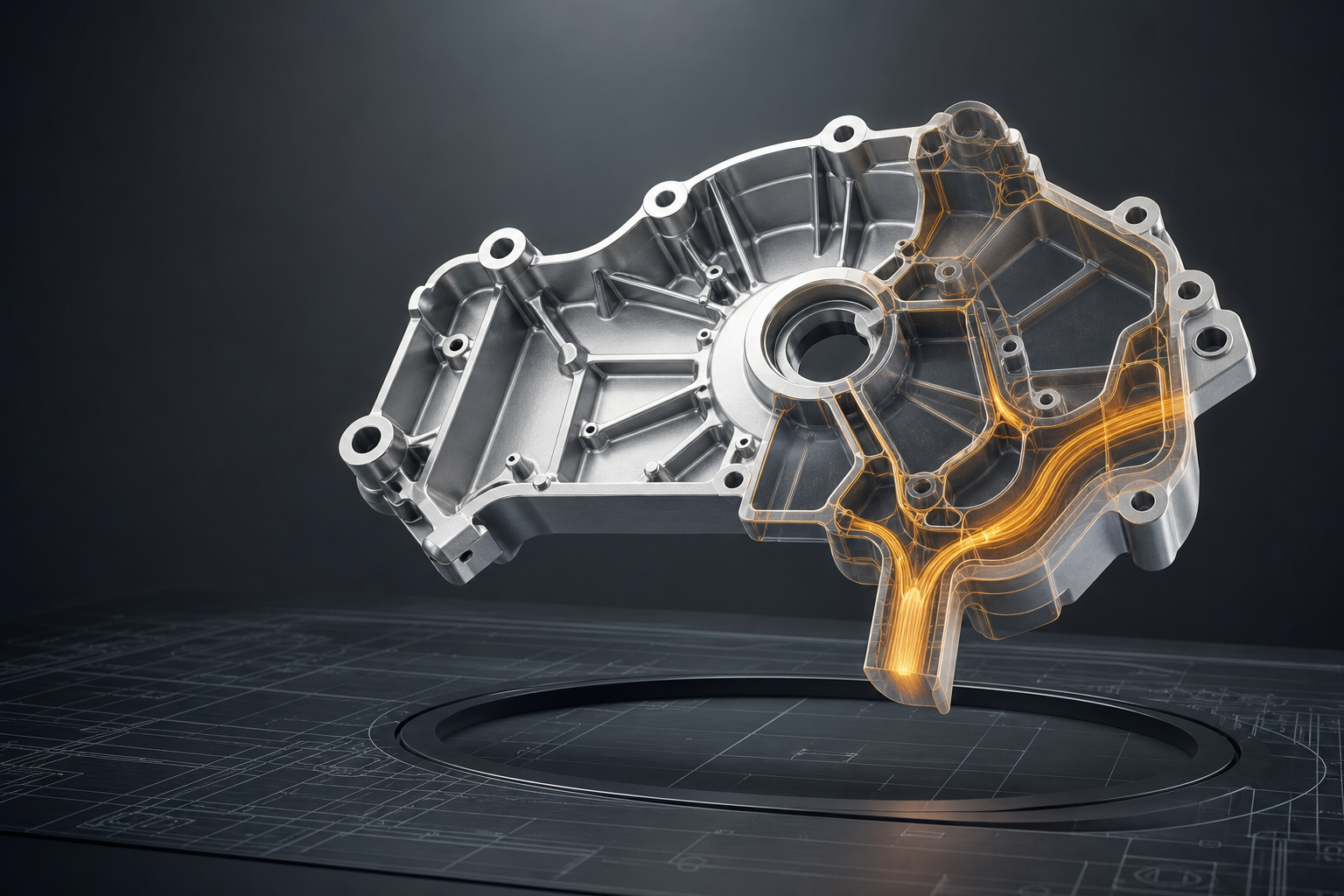

DFM Guide for Magnesium Alloy Die-Cast Parts: Wall Thickness, Ribs, Bosses, Fillets, and Draft

Magnesium alloys offer excellent fluidity for complex, thin-walled structures—but ‘fillability’ does not guarantee stable mass production. Robust DFM addresses metal flow, solidification, ejection, dimensional accuracy, post-processing, and inspection before tooling—avoiding reliance on parameter tuning to resolve design flaws.

Design Priorities

1. Prioritize Continuous Wall Thickness

Sudden wall-thickness transitions cause flow velocity variations, hot spots, and shrinkage risks. Where functionally permissible, maintain consistent primary wall thickness and connect localized reinforcement zones using gradual transitions and fillets. For required thick steps, consider core-outs, ribbing, or functional segmentation.

2. Ribs Should Enhance Efficiency—Not Just Add Material

Ribs must align with load paths and avoid excessively thick nodes at intersections. Rib roots require smooth transitions; rib tops and sides must accommodate ejection. Rib spacing, height, and thickness must be jointly determined by structural simulation and casting-specific DFM analysis.

3. Bosses Require Careful Root Stress & Fill Management

Tall, slender bosses risk incomplete filling, distortion, or cracking during ejection; overly thick root sections may induce porosity or shrinkage cavities. Use connecting ribs, root fillets, and optimized core pins to improve stability—and verify subsequent tapping or insert installation paths.

4. Fillets & Draft Directly Impact Mold Life

Sharp corners concentrate thermal and ejection stresses. External surfaces, internal cavities, deep ribs, and embossed/engraved features all require draft angles matched to depth and surface requirements. Do not defer draft validation until mold design—appearance surfaces must be ejection-feasible from the outset.

Parting Lines & Gating/Overflow Must Be Reviewed During Product Design

Parting lines affect flash, mismatch, aesthetics, and post-processing. Sliders and cores increase mold complexity, maintenance frequency, and dimensional chain uncertainty. Although gate, overflow, and vent placement are supplier-responsible, product teams must confirm these features avoid sealing surfaces, critical appearance zones, and high-stress regions.

How to Specify Tolerances & Machining Allowances

First distinguish between as-cast achievable dimensions, geometric corrections needed (e.g., straightness/flatness), machined mating surfaces, and assembly datums. Applying machining-grade tolerances to all dimensions inflates mold modification and inspection costs. Machining allowances should also be minimized—excessive stock removal may expose subsurface porosity.

Eight Items to Complete Before Mold Launch

1. Load path definition and critical failure mode analysis;
2. Wall-thickness thermal map and thickness-transition review;
3. Rib, boss, fillet, and draft-angle evaluation;
4. Parting line, slider/core, ejection system, and aesthetic surface confirmation;
5. Gate, overflow, vent, and vacuum concept layout;
6. As-cast tolerance specification and post-machining datum strategy;
7. X-ray, leak-test, and mechanical verification zone definition;
8. Mold tryout, correction, and production approval plan.

Frequently Asked Questions

Does Thinner Wall Always Reduce Cost?

Not necessarily. Excessively thin walls narrow the process window and increase scrap rates. Optimal wall thickness balances weight, stiffness, fillability, and yield.

Is Mold Flow Analysis Still Required After Structural Simulation?

Yes. Structural simulation validates in-service performance; mold flow and thermal analysis validate manufacturability and process stability—neither replaces the other.
